Product Name: Switching Power Supplies with 36W
Product Code: NC-CP01A-U
Type : Caged
Power Rating (W) : 36W
Input Voltages Range(Vac) : 100 to 240
AC Input Frequency (Hz) : 47 to 63
No.of Outputs : 1 or 2
Output Voltage(s)(V) : 5V/6V/9V/12V/15V/18V/24V
Max.Output Current(s)(A) : 4/3.8/3.5/3/2.4/2/1.5
Efficiency at Full Load (%) : 70~85
Operating Temp.Range (degC) : 0 to 40
Protection :
-Over-voltage protection
-Over-Current Protection
-Short-ciruit Protection
-Over-temperature Protection

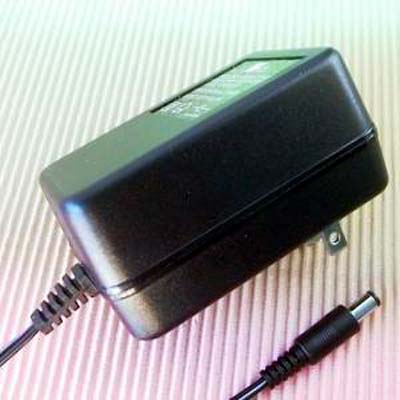

*** Photo for reference only
Min Order Quantity: 1,000PCS
Standard / Certificates: Safety/EMC Details:
CE(LVD)
GS
TUV
CSA
UL/CUL
EMI/EMC:EN55022/FCC
